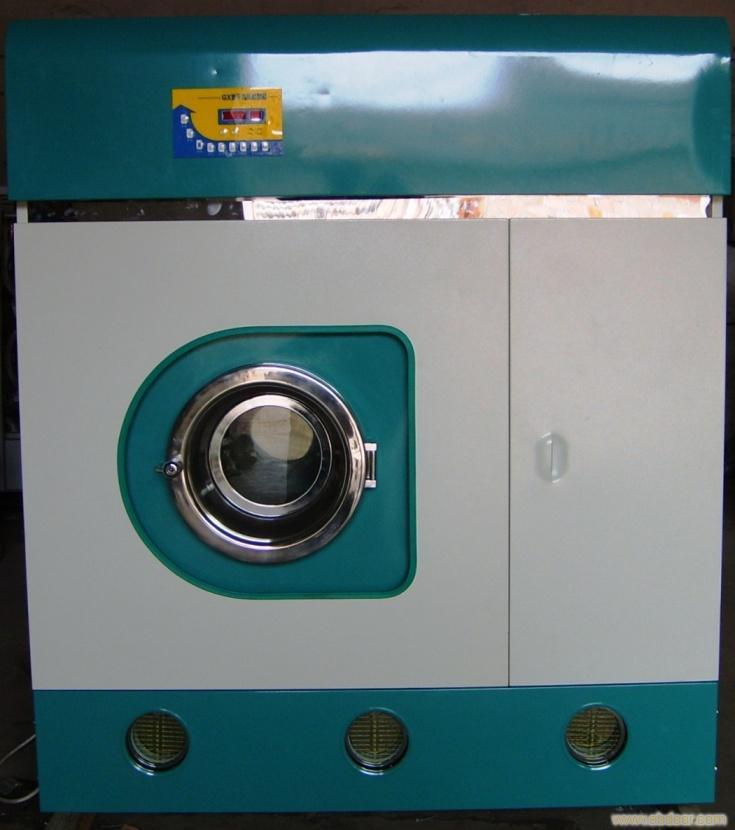

GX-10 automatic dry-cleaning machine series
GX-10 automatic dry-cleaning machine series is the finale of the companys products, ten years after the companys technical staff have been improved and updated, so that products are functional and excellent quality characteristics such as well received by the new and old customers favor and trust. The device has a computer process control, frequency control, distillation filtration, drying drying, detergent recovery, automatic separation of liquid water in one step. Equipment have been special treatment: the capacity of agents in contact with the container and high-quality selection of imports of stainless steel Seiko rubber seal manufacture the equipment, low noise, smooth operation, durable and greatly enhance the service life of machine and economic benefits.
Main technical parameters
GX-10A
Laundry Capacity
10kg
Distillation tank capacity
50 kg
Drum Capacity
0.155m3
Total Weight
780 kg
Wash Speed
40rpm
Main Motor Power
0.3-1.5kw
Drying rpm
400 rpm
Pump Motor
0.37 kw
Drying temperature
50 ℃ -70 ℃
Fan motor power
0.37 kw
Distillation temperature
100 ℃ -130 ℃
Vapor pressure
0.3-0.5Mpa
Washing time
40-60min / time
Distillation electric power
3 kw
Noise
≤ 75dB
Dry distillation total power
4.5 kw
Detergent consumption
0.5 kg / time
Total installed power
4.24kw
Solvent tank capacity
75 × 3
Voltage
200V 50Hz
Filtration tank motor power
0.37 kw
Size
1600 × 1100 × 1750
GX-10B
Laundry Capacity
10kg
Distillation tank capacity
50 kg
Drum Capacity
0.155m3
Total Weight
780 kg
Wash Speed
40rpm
Main Motor Power
0.3-1.5kw
Drying rpm
400 rpm
Pump Motor
0.37 kw
Drying temperature
50 ℃ -70 ℃
Fan motor power
0.37 kw
Distillation temperature
100 ℃ -130 ℃
Vapor pressure
0.3-0.5Mpa
Washing time
40-60min / time
Distillation electric power
3 kw
Noise
≤ 75dB
Dry distillation total power
4.5 kw
Detergent consumption
0.5 kg / time
Total installed power
4.24 kw
Solvent tank capacity
75 × 3
Voltage
200V 50Hz
Filtration tank motor power
0.37 kw
Size
1600 × 1100 × 1750 |

|
|
