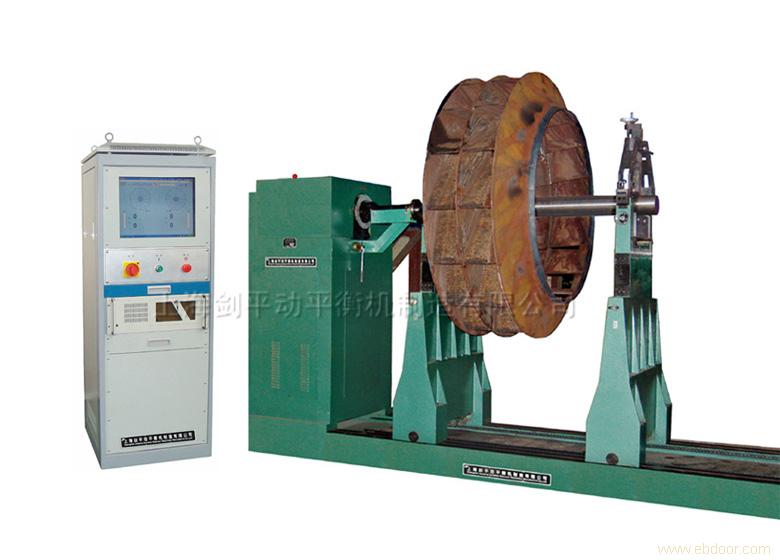

Shanghai Jianping Dynamic Balancing Machine:PHW-10000 Universal Joint Balancing Machine.
Mainly used in checking the balance of rotatable bodies such as motors, spindles of machine tools,fans, clinopodiums, ceramic machineryrollersrubber sticks,etc.. Driven by universal joints, and it can offer us a variety of rotation speed,with features of high precision,easy to be operated and high efficiency,etc.
|
Specifications |
Parameters |
|
Mass Scope of Workpiece (kg) |
10000 |
|
Max Diameter of Workpiece (mm) |
2400-3500 |
|
Distance Between Two Support Bearings (mm) |
Min:450 |
|
Journal Diameter Scope of Workpiece (mm) |
60~400 |
|
Max Distance between Driving Flange and Right Bearing Support (mm) |
3500 |
|
Rotation Speed of the Main Axis (r/min) |
192/330/550/900/1350/1667+
(Stepless Speed Regulating) |
|
Motor Power (kw) |
30 |
|
Torque of Universal Joint Shaft (N·m) |
2250 |
|
Min Achievable Residual Unbalance Amount (emar) |
1g· mm/kg |
