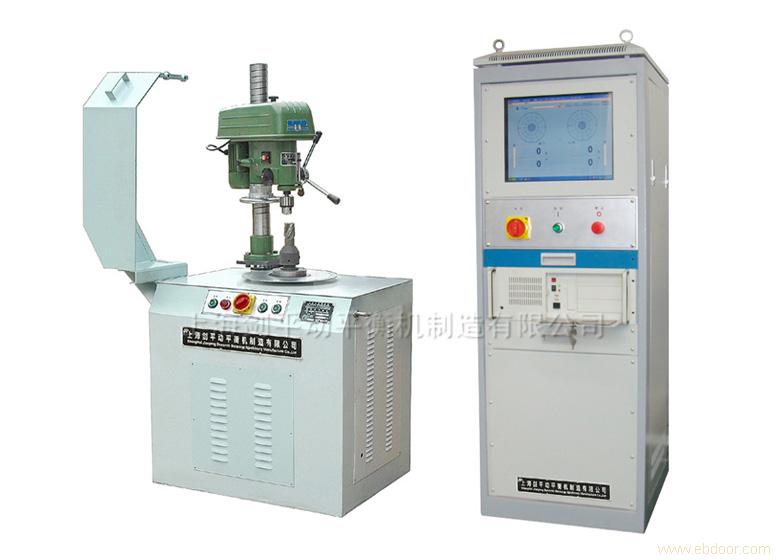

Shanghai Jianping dynamic balancing machine:Single Plane Vertical Balancing Machine:
This kind of balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fanbrake diskbrake drumsawbladebelt pulley,etc .. High speed and precision are its advanages.
|
Specifications |
Parameters |
|
Max Mass of Workpiece (with clump) (kg) |
65 |
|
Max Diameter of Workpiece (mm) |
800 ( if the machine is without cover)/510 (with cover). |
|
Height of Workpiece (mm) |
160 |
|
Rotation Speed of Main Axis (r/min) |
700 |
|
Motor Power (kw) |
2.2 |
|
Min Achievable Residue Unbalace Amount (emar) |
5g· mm/kg |
