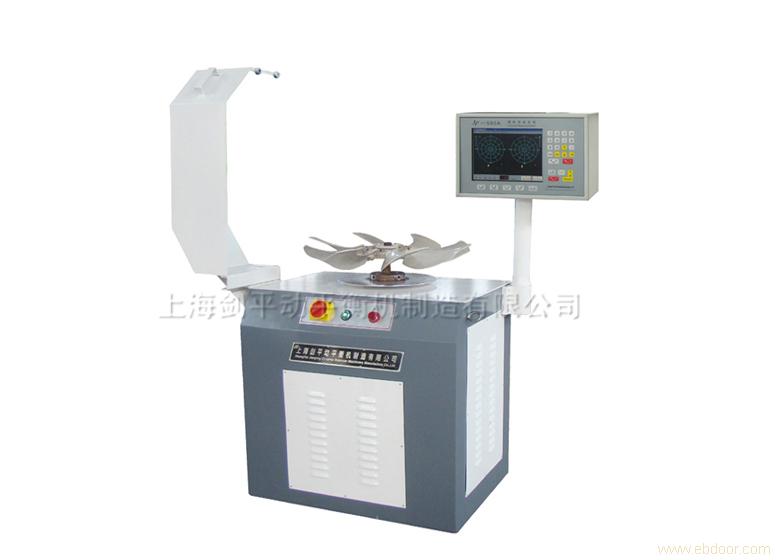

PHD-16 Single-plane Vertical Dynamic Balancing Machine(Standard)
This model is mainly used for dynamic balancing of the Fans Leaves, Pump Leaves,
Lampblack Absorber Wind Wheel, Flywheel, Grinding Wheel, Saw bit, Chuck, Brake etc..
The equipment used to add or reduce weight can be equiped to the balancing machine according to your requirements.
The function of Clamp Compensation is available.
This Electric Testing System can display the Phasic Location, Rotation Speed, Measurement, Working Mode by digital mode.
The Min Resolving Capability is 1 mg by weight and 1 degree by phsical location.
Technology Data
|
Specifications |
Parameters |
|
Max Mass of Workpiece (with clump) (kg) |
16 |
|
Max Diameter of Workpiece (mm) |
800 ( if the machine is without cover)/510 (with cover) |
|
Height of Workpiece |
160 |
|
Rotation Speed of Main Axis (r/min) |
900 |
|
Motor Power (kw) |
1.1 |
|
Min Achievable Residue Unbalace Amount (emar) |
5g· mm/kg |
