Jianping dynamic balancing machine:

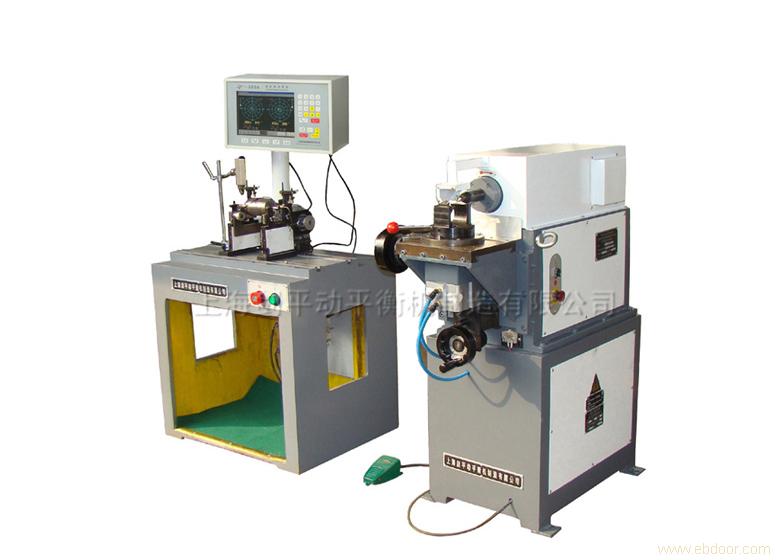

PHQ-5 Belt Driven Balancing Machine
This balancer is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, textile machinery, fans,shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
|
Specifications |
Parameters |
|
Max Mass of Workpiece (kg) |
5 |
|
Max Diameter of Workpiece (mm) |
260 |
|
Distance between Two Support Bearings (mm) |
50-400 |
|
Journal Diameter Scope of Workpiece (mm) |
3-40 |
|
Diameter Scope of Driving Belt (mm) |
20~85 |
|
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) |
500/650/1000/1340 |
|
Motor Power (kw) |
0.12 |
|
Min Achievable Residual Unbalance Amount (emar) |
0.3g· mm/kg |
