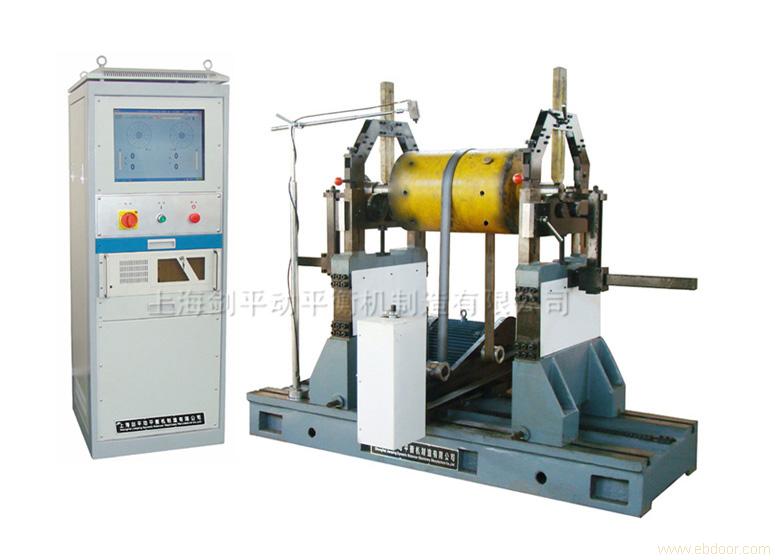

Shagnhai dynamic balancing machine:PHQ-3000 Belt-Driven Balancing Machine
Widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, textile machinery, fans,shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
|
Specifications |
Parameters |
|
Max Mass of Workpiece (kg) |
3000 |
|
Max Diameter of Workpiece (mm) |
2000 |
|
Distance between Two Support Bearings (mm) |
500--2200 |
|
Journal Diameter Scope of Workpiece (mm) |
40~380 |
|
Diameter Scope of Driving Belt (mm) |
50~1000 |
|
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) |
-1880(Variable-frequency and Stepless Speed regulating) |
|
Motor Power (kw) |
11 |
|
Min Achievable Residual Unbalance Amount (emar) |
0.5g· mm/kg |
