PHQ-1600 Balancing Machine for textile machinery
|
|
|
|
|
Price: |
Negotiable |
|
Effective Period: |
Valid permanently |
|
Place or Origin: |
Shanghai China |
|
Supply Quantity: |
No Limited |
|
Number of Browsing: |
|
|
Need more product details? Contact Now! |
 |
|
|
|
|
|
Detailed Product Description
|

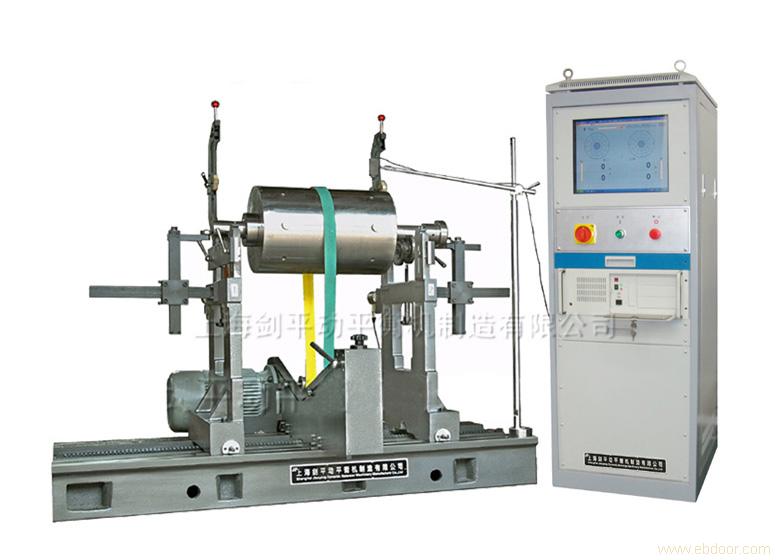

Jianping balancing machine:PHQ-1600 Belt Driven Balancing Machine
This balancing machien is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, textile machinery, fans,shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
|
Specifications |
Parameters |
|
Max Mass of Workpiece (kg) |
1600 |
|
Max Diameter of Workpiece (mm) |
1800 |
|
Distance between Two Support Bearings (mm) |
180--1700 |
|
Journal Diameter Scope of Workpiece (mm) |
40~240 |
|
Diameter Scope of Driving Belt (mm) |
40~600 |
|
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) |
-1880(Variable-frequency and Stepless Speed regulating) |
|
Motor Power (kw) |
7.5 |
|
Min Achievable Residual Unbalance Amount (emar) |
0.5g· mm/kg | |
|
|
|
