Detailed Product Description
|

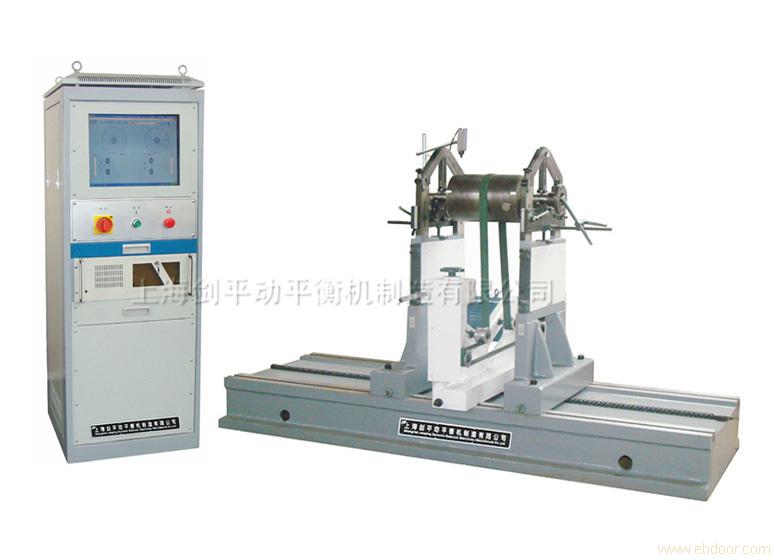

Shanghai Jianping Dynamic Balancing Machine:PHQ-500 Belt Driven Balancing Machine
Widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, textile machinery, fans,shaft, etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
|
Specifications |
Parameters |
|
Max Mass of Workpiece (kg) |
500 |
|
Max Diameter of Workpiece (mm) |
1500 |
|
Distance between Two Support Bearings (mm) |
160--1500 |
|
Journal Diameter Scope of Workpiece (mm) |
20~180 |
|
Diameter Scope of Driving Belt (mm) |
40~400 |
|
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) |
812/1092/1624/2184 |
|
Motor Power (kw) |
2/2.4 |
|
Min Achievable Residual Unbalance Amount (emar) |
0.5g· mm/kg |
|
|
|
|
