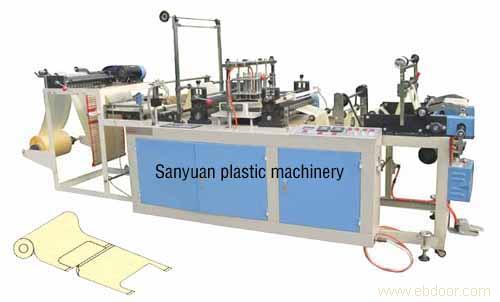

FQCD-B500/B800 Computer Rolls-Connecting and Dots-severing Vest Bag Making Machine
Uses:This machine is made by our factory with the advanced technology from abroad,and ameliorated by ourself.With the characteristic of steady quality,high output,less power consume,automatic control and completed protect edvices,steady capability,long life,low noise,easy to operate and maintain,non-pollution,etc. The bag making machine is suitable of HDPE and LDPE plastic film’s heat sealing and heat cutting bag making process,which is the ideal machine for making plastic rolls-connecting bag.It can continuously automatic bottom sealing and binding various of color printed or without color printed plastic bag,it adopt micro-computer control,steppless speed regulation by stepping motor,accurate photoelectric eye tracking,accurate pattern position,it has many automatic protection functions for over-load,over-voltage and over-current etc,which can also help fo energy saving,with advantage of high yield rate. The machine is special for making plastic rolls-connecting vest bag.
Main Technical Parameters:
|
Model type |
FQCD-600 |
FQCD-700 |
|
Sealing and cutting Width |
300mm*2 |
350mm*2 |
|
Sealing and cutting Length |
100-1200mm |
100-1200mm |
|
Sealing and cutting Thickness |
0.02-0.15mm |
0.02-0.15mm |
|
Bag-making Speed |
printed bag 10-80pcs/min
plain bag 20-160pcs/min |
printed bag10-80pcs/min
plain bag 20-160pcs/min |
|
Motor Power |
1.1kw |
1.1kw |
|
Error in Length |
2mm |
2mm |
|
Machine Weight |
700kg |
900kg |
|
Overall Dimensions(L*W*H) |
3200*1180*1600mm |
3200*1280*1600mm | Relation Keywords: on rolls bag making machine| garbage bag making machine|trash bag making machine| |

|
