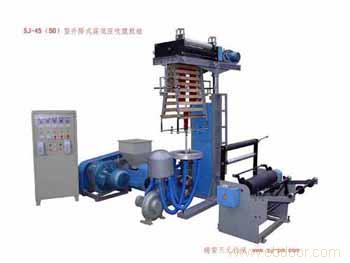

SJ-45(50)Lifting HDPE LDPE Film Blowing Machine
Descreptions:This film blowing machine is used for blowing the various plastic film of low density polyethylene(LDPE), high density polythylene(HDPE)and linear low density polyet-hylene(LLDPE)etc,Which are widely used for packing food,fruit, garments, textile, garbage bag and vest bag other civil and industrial products, etc and for vest bag.
Main Technical Parameters:
| Model type |
SJ-45 |
SJ-50 |
| Diameter of Screw Stem |
45mm |
50mm |
| Major Diameter Ratio of Screw Stem |
28:1 |
28:1 |
| Thickness of Products |
0.004-0.08 |
0.004-0.08 |
| Folding Width of Products |
200-500mm |
200-600mm |
| Main Motor Power |
7.5kw |
11kw |
| Heating Power |
12kw |
13kw |
| Rational Speed of Screw Stem |
10-120rpm |
10-120rpm |
| Output |
20-30kg/h |
20-35kg/h |
| Machine Weight |
1800kg |
1900kg |
| Overall Dimensions(L*W*H) |
6000*2000*3200mm |
6200*2100*3200mm | Relation Keywords:film blowing machine|pe film flowing machine|lifting film blowing machine|hdpe film blowing machine|ldpe film blowing machine|pe film making machine| |

|
