PTFE Insulating Water-drawing Tube

       PTFE insulating water-drawing tube is made from PTFE dispersion resin and is prepared by the technology of paste extrusion. The tube gives good insulation property, excellent resistance to virtually all chemicals, high temperature and aging with a light-weight body. It can be used as insulating water-drawing tube of cooling water system for turbo-generator with inner water-cooled stator and stainless steel wire reinforced PTFE inner tube for rotor under the condition of the water temperature of ＜85℃ and the pressure of 500 kpa. It conforms to the enterprise standard of Q/GHAD 23-2000.

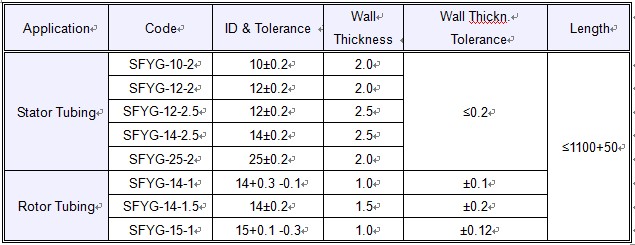

Code & Specification ：                                                                                                      Unit：mm

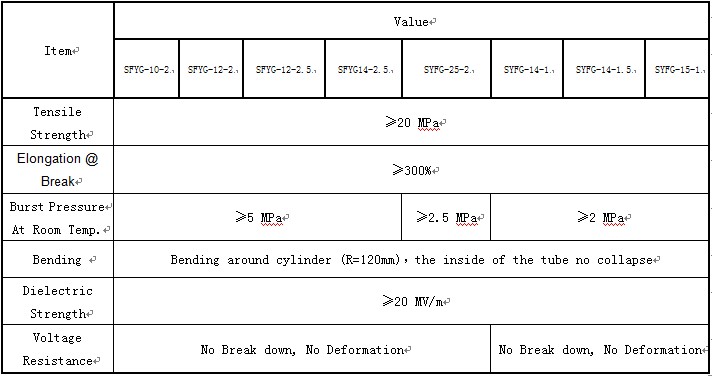

Main Properties：
