PTFE Convoluted Hose Assembly

PTFE convoluted hose assembly composes of PTFE convoluted inner tube, stainless steel reinforced out layer and end fittings. The hose has excellent flexibility properties, small bend radius, as well as good insulation and chemical resistance at temperature of -55~+200℃ and pressure of 0.5MPa.. It can be used as conveying conduit for hydraulic and pneumatic medium and used in aircraft engine lubrication system. It conforms to the enterprise standard of Q/GHDA 95-2008.

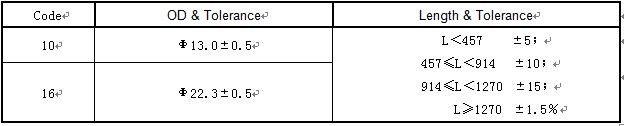

 Code & Specification:
