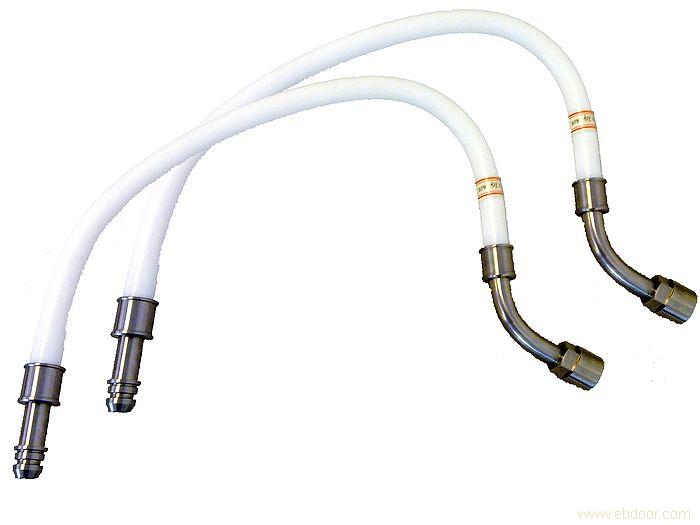

PTFE Shaped Insulating Water-drawing Tube

         PTFE shaped insulating water-drawing tube is made from PTFE dispersion resin and is prepared by the technology of paste extrusion and then is sintered and shaped by a mold. It can be used as insulating water-drawing tube of cooling water system for turbo-generator under the condition of the water temperature of 85℃ continuously or the water temperature of 135℃ intermittently and the pressure of 500 kpa. It conforms to the enterprise standard of Q/GHAD 51-2009.

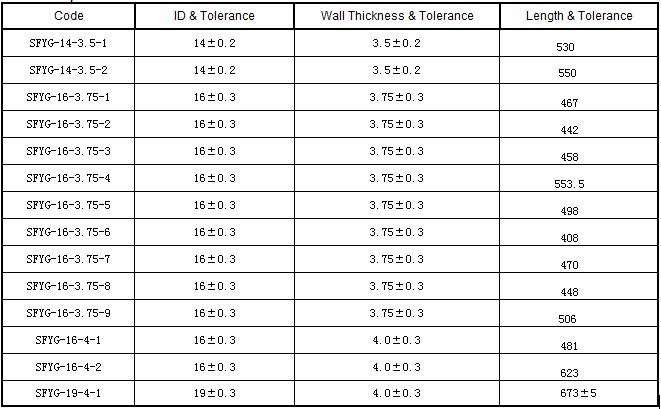

Code & Specification                                                                                                Unit：mm
