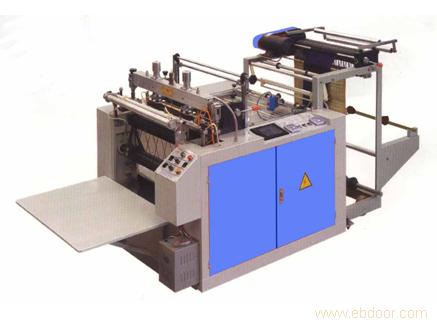

FQCH-600(700)Computer Hot-cutting and Hot-sealing Bag Making Machine
Descriptions:FQCH-600(700)Computer hot-cutting and Hot-sealing Bag Making Machine is suitable for hot-sealing and hot-cutting high-density polyethylene(hdpe) and low-density polyethylene(ldpe) plastic film.It adopts computer color code-tracking,automatic batch binding.If it is equipped with a "U"shape bag punching machine,it can make vest bags.
Main Technical Parameters:
|
Model type |
FQCH-600 |
FQCH-700 |
|
Sealing and cutting Width |
<450mm |
<550mm |
|
Sealing and cutting Length |
<800mm |
<1000mm |
|
Sealing and cutting Thickness |
0.01-0.05mm |
0.01-0.05mm |
|
Bag-making Speed |
30-120pcs/min |
30-120pcs/min |
|
Machine Power |
3.5kw |
4.5kw |
|
Power Supply |
220v 50hz |
220v 50hz |
|
Completer Weight |
700kg |
750kg |
|
Overall Dimensions(L*W*H) |
2900*1150*1250MM |
2900*1250*1250MM |
