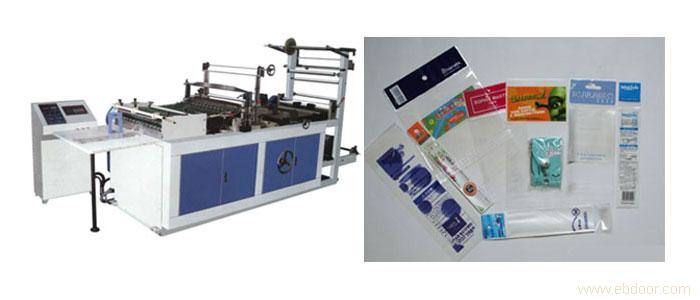

FQCS-600(700)Computer Hot-cutting Side-sealing Bag Making Machine
Descriptions:FQCS-600(700)Computer hot-cutting side-sealing bag making machine is not only suitable for opp packing but also for machine the PVC,HDPE,LDPE of hot-cutting and edge-sealing.According to the customers requirements,it can be fitted ultrasonic,air-punch and double-tape gluing device.The machine has such features as microcomputer controlling,transducer regulationg,photoelectric tracking and tension adjusting,with high automatic function and stable performance,easy to operate which is widely used for making plastic bags.
 Main Technical Parameters:
|
Model type |
FQCS-600 |
FQCS-700 |
|
Sealing and cutting Width |
<600mm |
<700mm |
|
Sealing and cutting Length |
50-700mm |
50-700mm |
|
Sealing and cutting Thickness |
0.01-0.05mm |
0.01-0.05mm |
|
Bag-making Speed |
30-120pcs/min |
30-120pcs/min |
|
Machine Power |
3.5kw |
4.5kw |
|
Power Supply |
220v 50hz |
220v 50hz |
|
Completer Weight |
700kg |
750kg |
|
Overall Dimensions(L*W*H) |
2900*1150*1250MM |
2900*1250*1250MM | Relation Keywords: side sealing bag making machine|pp bag making machine|opp bag making machine|packing bag machine|clothes bag making machine|sock bag making machine|bread bag making machine|towel bag making machine|ornament bag making machine|die cut bag making machine| |

|
